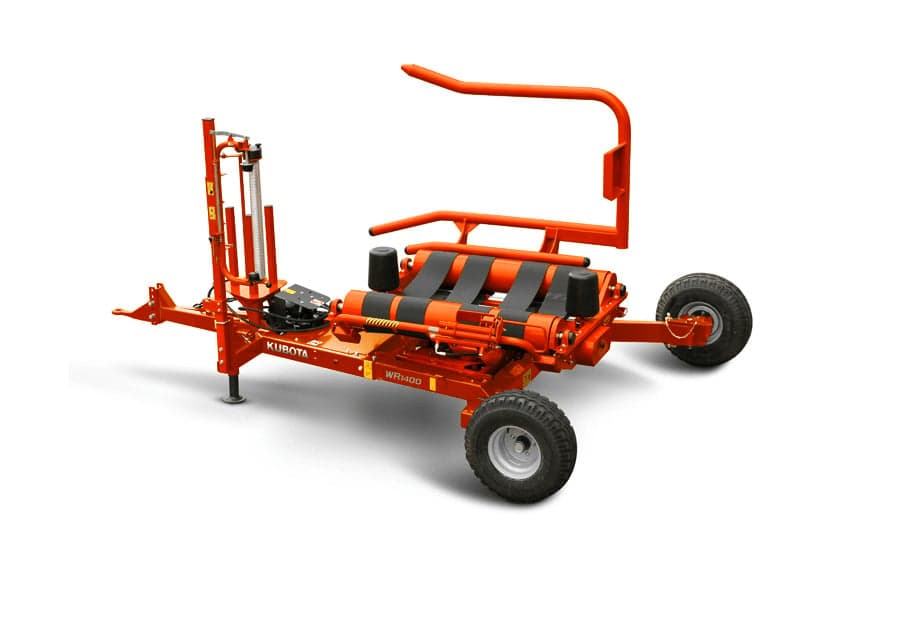

WR1600C
WRAPPERS
Call for Pricing
A low-profile, round bale wrapper that works smarter and harder, giving you the best quality silage and hay. You can control the WR1600C by computer or by joystick, helping you move efficiently throughout the day. With features like outstanding maneuverability and easy transportation, you’ll cover more ground than ever before with the power of the WR1600C!
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months on your new Kubota WR Series!
WRAPPER SERIES
Easy To Operate
The Kubota WR1400 is a pull-type wrapper designed for smaller tractors. The machine is very easy to operate. A fully automatic film cutter comes standard on all models.
Extendable Wheel Arm
To allow for increased stability during bale loading, an extendable wheel arm was incorporated into the frame design. This allows bales up to 2650 lbs. to be loaded without any counter weight on the machine.
Double film application systems lift output to the next level
- DuoWrap device
Double pre-stretchers
- 66% overlapping = higher air resistance
- 60% increased wrapping capacity
- Single film wrap capability (gearbox)
Gentle Unloading
Wide spaced wheels allow for an exceptionally low turntable height. This design allows the table to be tilted downward until it nearly touches the ground, reducing drop height when unloading bales. This provides the gentlest possible handling of wrapped bales. It reduces the chance of film damage and eliminates the need for a fall damper or drop mat. Additionally, it can be fitted with a bale on end kit, which allows the bale to be tipped off gently without damage to the bale.
Narrow Transport Width
For narrow transport width, the right hand wheel is turned to the inside of the support arm.
High Speed Pack for 75% higher wrapping capacity
- Fastest and unique turntable wrapping technology in the market
- DuoWrap double pre-stretchers
60% increased wrapping capacity
- No driver action required, no extra steps/actions
- Time efficient and comfortable system
Turntable Principle
The turntable with two driven rollers is designed for high bale stability and smooth, even rotation. This ensures consistent bale rotation even in the most difficult of conditions.
Specs & Compare
Compare models.
WR1600C
HP
Call for Pricing
Specifications
1 Pre- Stretcher 750mm
Adapter Kit For 20" (500mm) Film Spool
Auto- Stop At End Of Wrapping Cycle
Automatic Film Cutter
Bale And Wrap Counter
Electro Hydraulic Joystick ( J)
Fill Roll Magazine
Film End/ Tear Sensor ( C)
Manual Cable Control ( M)
Max Bale Size ( L X D) In.
Max Bale Weight Lbs.
Max. Wrapping Speed Rpm.
Mounted Wrapper
Oil Consumption (l/min)
Pre- Stretcher 29.5" (750mm)
Programmable Computer ( C)
Pull- Type Wrapper
Remote Control ( C)
Road Lights
Support Rollers/ Belts (number)
Transport Height In.
Transport Length Ft.
Transport Width Ft.
Weight Lbs. (kg)
Wheels And Axles | 10.0/80-12
1 Pre- Stretcher 750mm
Standard
Adapter Kit For 20" (500mm) Film Spool
Optional
Auto- Stop At End Of Wrapping Cycle
Standard
Automatic Film Cutter
Standard
Bale And Wrap Counter
Standard
Electro Hydraulic Joystick ( J)
Standard
Fill Roll Magazine
Optional
Film End/ Tear Sensor ( C)
Not Available
Manual Cable Control ( M)
Standard
Max Bale Size ( L X D) In.
47" x 50"
Max Bale Weight Lbs.
2650
Max. Wrapping Speed Rpm.
30
Mounted Wrapper
Not Available
Oil Consumption (l/min)
28
Pre- Stretcher 29.5" (750mm)
Standard
Programmable Computer ( C)
Not Available
Pull- Type Wrapper
Standard
Remote Control ( C)
Not Available
Road Lights
Optional
Support Rollers/ Belts (number)
2/4
Transport Height In.
76"
Transport Length Ft.
14.17'
Transport Width Ft.
8.25'
Weight Lbs. (kg)
2249
Wheels And Axles | 10.0/80-12
Standard
