SVL65-2
CONSTRUCTION
MSRP AS LOW AS
$0.00

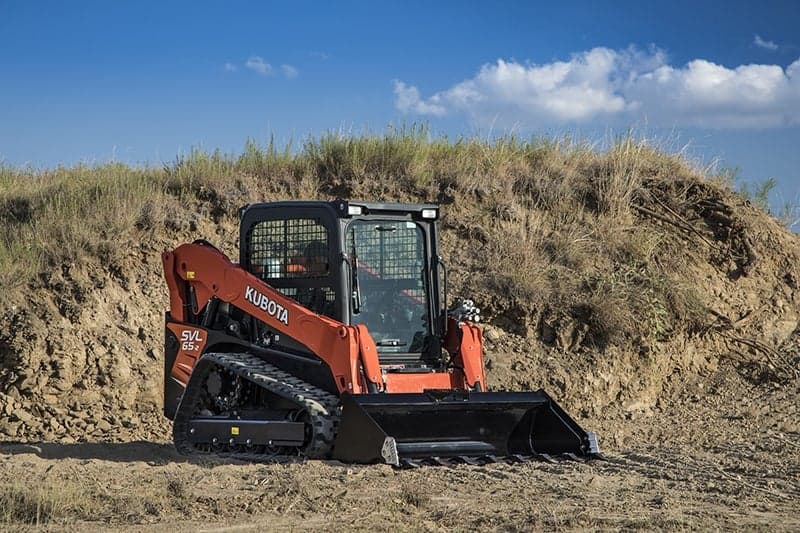

Don’t just finish the job. Dominate it behind the controls of the Kubota SVL65-2. Whether hardscaping or landscaping, you’ll experience nimble maneuverability, power and comfort in the orange track loader. Advanced hydraulics and 68.3 horsepower ensure you won’t have to back down from a challenge and the SVL65-2 loves a good challenge.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
Save up to $4000 or 0% A.P.R. FOR UP TO 36 MONTHS with 0% Down ON SVL SERIES!
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Integrated Mainframe and Undercarriage
Because Kubota designed compact track loaders first, their platform is different from the skid steers. So, unlike “skid steers turned compact track loaders” with bolt-on undercarriages, Kubota’s integrated undercarriage is welded with no exposed hoses or openings, providing a sturdier and more durable design.
Electronic Travel Torque Management
The electronic travel torque management system lets you work faster with more power. By optimizing hydraulic performance when pushing or moving heavy loads, the system prevents engine stalling allowing for faster recovery.
Rugged Loader Arms Design
Robust and tightly secured loader arms linkage that can do both radial and vertical lift operations.
.jpg%3Fsfvrsn%3De30ae705_0&w=750&q=75 "Advanced Multifunction Valve (SVL65-2)")
Advanced Multifunction Valve (SVL65-2)
The SVL65-2's hydraulic system features an innovative Advanced Multifunction Valve that provides smooth movements of all hydraulic functions when operated simultaneously. The AMV now allows operators to run the AUX hydraulics, bucket and loader arm functions together without stalling.
Specifications
Auxiliary Hydraulic Pressure, Psi (bar)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Bucket Breakout Force, Lbf (kg)
Displacement Cu. In. (cc)
Ground Clearance, In (mm)
Ground Contact Pressure, Psi (k Pa)
Ground Pressure, (psi)
Height To Hinge Pin, In (mm)
Horsepower (gross)
Lift Arm Breakout Force, Lbf (kg)
Lift Arm Path
Operating Weight, Lbs (kg)
Operator Station
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Rated Operating Capacity ( R O C), Lbs (kg)
Tipping Load, Lbs (kg)
Track Ground Contact Length, In. (mm)
Track Rollers (per Side)
Track Width (standard/wide), In. (mm)
Traction Force, Lbf (kgf)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Auxiliary Hydraulic Pressure, Psi (bar)
3263 (229.4)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
17.4 (65.8) / 27.0 (102.2)
Bucket Breakout Force, Lbf (kg)
4614 (2093)
Displacement Cu. In. (cc)
159.6 (2615)
Ground Clearance, In (mm)
9.1 (233)
Ground Contact Pressure, Psi (k Pa)
Standard: 5.0 (34.5) Wide: 4.2 (30)
Ground Pressure, (psi)
Standard: 5.0 Wide: 4.2
Height To Hinge Pin, In (mm)
118.5 in (3009.9)
Horsepower (gross)
68.3
Lift Arm Breakout Force, Lbf (kg)
4266 (1935)
Lift Arm Path
Vertical
Operating Weight, Lbs (kg)
8135 (3690) / 8631 (3915)
Operator Station
Open cab / closed cab
Overall Height, Ft (mm)
79.9 (2029)
Overall Length, Ft (mm)
136.4 (3465)
Overall Width, Ft (mm)
Vehicle Width With Bucket: 68 (1727) / 74 (1880)
Rated Operating Capacity ( R O C), Lbs (kg)
35% Tipping Load (lbs): 2100 (953)
Tipping Load, Lbs (kg)
6000 (2722)
Track Ground Contact Length, In. (mm)
57.9 (1470)
Track Rollers (per Side)
4
Track Width (standard/wide), In. (mm)
12.6 (320) / 15.0 (380)
Traction Force, Lbf (kgf)
8406 (3813)
Traveling Speed: High, Mph (kph)
7.1 (11.5)
Traveling Speed: Low, Mph (kph)
4.9 (7.8)
