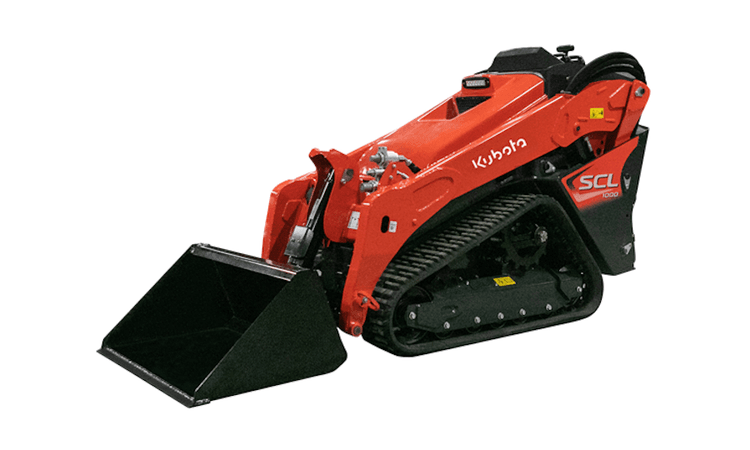

SCL1000

STAND-ON COMPACT LOADER

Call for Pricing

The SCL1000, compact in size, packed with performance and features. The SCL1000 features a wide 9.8-inch track that comes standard on the narrow, 36-inch machine.  Boasting a powerful 24.8 horsepower turbo-charged Kubota diesel engine, this machine is able to handle all of those tough tasks and materials.  Precision engineered with cushioned loader boom cylinders and an adjustable platform suspension system, this machine is determined to increase operator comfort for maximum productivity.

Shop

Find Parts

Download

Specifications

Compare

Specifications

Special Offers

  • Construction

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!

    Construction
  • STAND-ON COMPACT LOADER

    Save up to $1,500 or $0 Down, 0% A.P.R. FOR UP TO 24 MONTHS on the SCL1000!

    STAND-ON COMPACT LOADER
DURABILITY

DURABILITY

  • Auxiliary hydraulic lines are routed inside the loader arm for optimal protection. Case drain is standard. Auxiliary hydraulic couplers are pressure release type.
  • Attachment hose guide is standard.
  • Welded track frame has angled top for debris shedding and the dual flange front idler provides better stability and weight distribution.
SERVICE

SERVICE

  • Easy to access centralized filters and everyday maintenance items.
  • Dash indicator light alerts when the air filter needs cleaned, and service  information is readily available at the touch of a button.
  • Maintenance time is reduced with permanently sealed and lubricated track rollers, and the grease type track tension system.
COUPLER

COUPLER

  • Heavy-duty cast CII Coupler and protective cover for bucket cylinder fittings.
  • CII coupler is standard.
  • Optional welded 2-lever style coupler.
  • Solid state controller minimizes fuses reducing electrical components, while improving reliability.
  • The hood is made out of impact resistant material for greater protection.
SAFETY

SAFETY

  • Engine RPM has to be at idle to unlock the hydraulics for machine operation.
  • Walk behind mode for loading onto a trailer allows operation of the travel and loader joysticks only.
  • When operator leaves the platform, the parking brake is automatically engaged.
  • Front LED work light has 30 second courtesy timer to stay on after powering off.
OPERATOR CONTROLS

OPERATOR CONTROLS

  • The patent pending T-drive handle provides intuitive and ergonomic steering.
  • Hydraulic pilot-operated loader and drive control valves offer precise and responsive control of the machine.
  • Right hand joystick controls loader arm and bucket movement.
  • Auxiliary hydraulics are easily operated without removing your hand from the loader joystick.
  • Continuous flow in either direction is as simple as pushing a button.
COMFORT & CONVENIENCE

COMFORT & CONVENIENCE

  • Cushioned loader boom cylinders and adjustable platform suspension increase operator comfort for maximum productivity.
  • 4.3" Color LCD monitor
  • Keyless start with passcode protection
  • 12 Volt charging port
SCL1000

SCL1000

HP

Call for Pricing

Specifications

Auxiliary Hydraulic Pressure, Psi (m Pa) (kgf Cm2)

2800 psi (19.3) (196.8)

Displacement, Cu In (cm3)

54.8 (898)

Engine Type

Water cooled 4 cycle diesel engine with 3 cylinder, turbo, EPA Tier 4

Horsepower (gross)

24.8

Low Idling Speed, Rpm

1250

Overall Height, In (m)

55.7 (1.41)

Overall Length, In (m)

Transport (w/Std Bucket Parallel to Ground): 107.7 (2.74) (w/o Bucket): 84.9 (2.16):

Overall Width W/ Std Bucket, In (cm)

36 (91.44)

Rated Operating Capacity ( R O C), Lb (kg)

1,000 (453 kg) @ 35%

Rated Speed, Rpm

2800

Tipping Load, Lbs (kg)

2857 (1296)
